Clevis Pin
A fastener with a cylindrical head
In stock
SKU
BW06
From
€2.45
€2.45
High Polished Stainless Steel – AISI 316
A fastener with a cylindrical head, a point, and a hole through the side. Used in most application, in combination with a rigging screw, fork or toggle.
Specifications

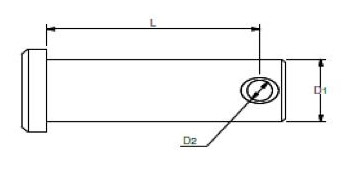

| ART. NO. | L | D1 | D2 | KG/100 |
|---|---|---|---|---|
| 061605 | 15 | 5,0 | 2,5 | 0,30 |
| 061806 | 17 | 6,0 | 2,5 | 0,90 |
| 061663 | 16 | 6,35 | 2,5 | 0,90 |
| 061908 | 18 | 8,0 | 3,0 | 1,00 |
| 062008 | 21 | 8,0 | 2,5 | 1,10 |
| 062395 | 23 | 9,5 | 3,0 | 1,50 |
| 062611 | 26 | 11,0 | 3,5 | 2,40 |
| 062812 | 28 | 12,0 | 4,0 | 3,00 |
| 062813 | 28 | 12,7 | 4,0 | 3,50 |
| 063412 | 34 | 12,0 | 4,0 | 4,00 |
| 063214 | 33 | 14,0 | 4,0 | 5,30 |
| 063714 | 37 | 14,0 | 4,0 | 5,50 |
| 063416 | 34 | 16,0 | 3,5 | 6,50 |
| 064016 | 40 | 16,0 | 3,5 | 7,70 |
| 064419 | 45 | 19,0 | 3,5 | 13,00 |
| 064919 | 49 | 19,0 | 3,5 | 14,00 |
| 064622 | 46 | 22,0 | 5,5 | 16,30 |
| 065522 | 55 | 22,0 | 5,5 | 19,00 |
| 065822 | 58 | 22,0 | 5,5 | 20,00 |
| 065525 | 56 | 25,4 | 5,5 | 25,00 |
| 066325 | 63 | 25,0 | 5,5 | 28,00 |
| 067328 | 73 | 28,0 | 5,5 | 40,00 |
| 068332 | 83 | 32,0 | 6,5 | 60,00 |
| 068835 | 88,5 | 35,0 | 6,5 | 76,00 |
