Rope Rigging Screw Eye - Toggle
The Blue Wave Chromed Bronze Body features a number of details that makes it the best choice for exclusive and durable rigging. The radius of the eye is especially made for ropes.
In stock
SKU
BW3319
From
€47.75
€47.75
Blue Wave Rigging Screws Chromed Bronze Body - Stud UNF Thread - Toggle Stainless Steel AISI 316
The Blue Wave Chromed Bronze Body features a number of details that makes it the best choice for exclusive and durable rigging. The sleek, open Bronze body prevents the threads from sizing up. The radius of the eye is especially made for ropes.
- More opportunities to benefit from UHMPE ropes
- Unique and slim design
- Easy and viable to use and assemble
- AISI316L stainless steel
- Easy to fit to existing rigging screws and deck fittings.
- Backed by a full range of high quality rigging hardware.

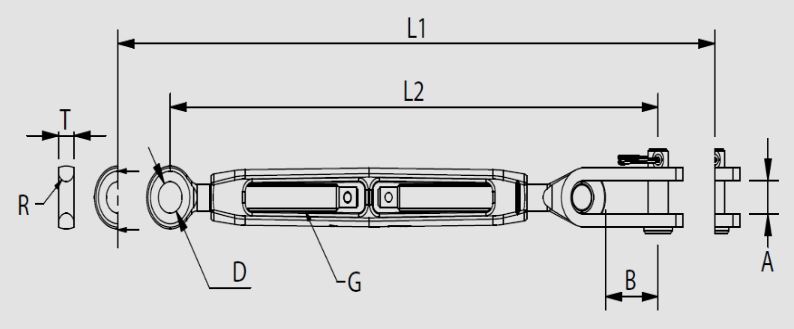

Specifications
| ART. NO. | THREAD G | ROPE | PIN | A | B | D | L1 | L2 | R | T | BL/KG |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BW331906AF | "1/4""" | 3 | 6,35 | 8 | 17 | 7,5 | 215 | 155 | 2,5 | 5 | 1300 |
| BW331908AF | "5/16""" | 4 | 8 | 10 | 20 | 9,5 | 267 | 191 | 4 | 8 | 200 |
| BW331910AF | "3/8""" | 5 | 9,5 | 12 | 26 | 13,5 | 307 | 225 | 5 | 12 | 3400 |
| BW331911AF | "7/16""" | 6 | 11,1 | 15 | 28 | 13,5 | 342 | 254 | 5 | 12 | 4600 |
| BW331912AF | "1/2""" | 7 | 12,7 | 18 | 35 | 17,5 | 380 | 276 | 7 | 16 | 6100 |
| BW331916AF | "5/8""" | 8 | 16 | 20 | 41 | 17,5 | 478 | 342 | 7 | 16 | 9900 |
| Thread | UNF |
|---|
