T-Rope Eye Forged
The Blue Wave T-rope eyes are a simple and strong solution for making synthetic rigging. It's easy to connect a HMPE rope to the terminal using an eye splice. The T-Terminal is made from High Quality 316 Stainless Steel.
In stock
SKU
BW6165F
From
€10.50
€10.50
The Blue Wave T-rope eyes are a simple and strong solution for making synthetic rigging. It's easy to connect a HMPE rope to the terminal using an eye splice. The T-Terminal is made from High Quality 316 Stainless Steel.
More opportunities to benefit from UHMWPE and UHMW ropes
- Unique and slim design
- Easy and viable to use and assemble
- AISI316L stainless steel
- Easy to fit to existing rigging screws and deck fittings.
- Backed by a full range of high quality rigging hardware.
Specifications

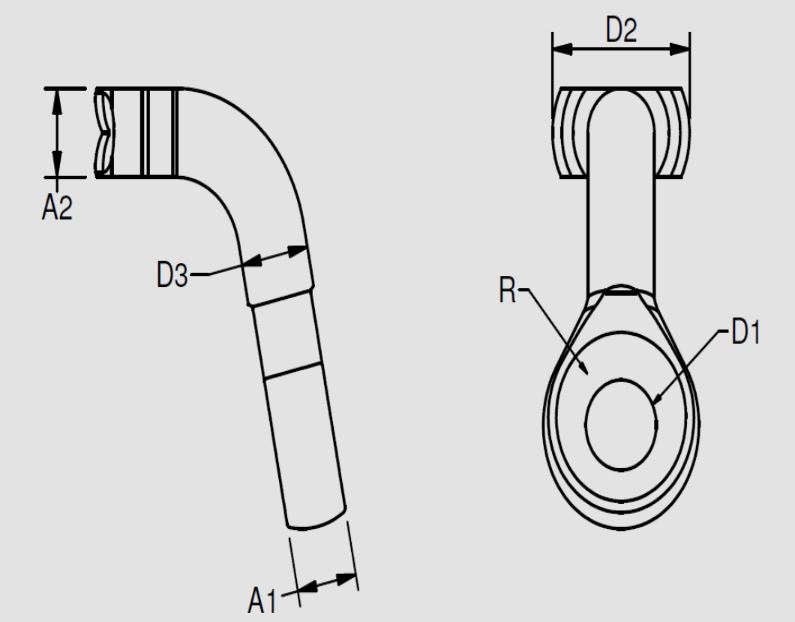

| ART. NO. | ROPE | A1 | A2 | D1 | D2 | D3 | R | BL/KG | FITS IN Blue Wave | FITS IN Navtec | FITS IN Selden | KG/100 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 616506F | 3 | 5 | 6.35 | 7 | 13.5 | 6.35 | 2.5 | 1800 | 616103 | 740-3 | 507-553 | 1.6 |
| 616507F | 4 | 7 | 7.5 | 9 | 18 | 7.5 | 3.25 | 2600 | 616105 | 740-4 | 507-551 | 3.3 |
| 616508F | 4 | 7 | 9 | 9 | 19.5 | 9 | 4 | 3800 | 616105 | 740-4 | 507-551 | 4.1 |
| 616512F | 5-6 | 9 | 14 | 13 | 29 | 14 | 5 | 6700 | 616107 | 740-7 | 12.1 | |
| 616516F | 7-8 | 12 | 18 | 16 | 36 | 18 | 7 | 12400 | 616110 | 740-10 | 507-582 | 25.1 |
| Diameter | 3 mm, 4 mm, 4.1 mm, 5-6 mm, 7-8 mm |
|---|
