Swage Stemball Terminal
Swage Stemballs from Petersen are forged from low carbon stainless steel AISI 316L and is incredibly strong. Petersen swage stemballs can be used with many different wire-rope constructions.
In stock
SKU
HMSB
From
€17.55
€17.55
Hi Mod Petersen Stainless Stemball Terminal Stainless Steel AISI 316
Hi Mod - Petersen Stainless Stemball Terminal
Swage Stemballs from Petersen are forged from low carbon stainless steel 316L and is increadibly strong. Petersen swage stemballs can be used with many different wire-rope constructions. As a manufacturer of swage eyes Petersen can offer you an affordable, customised swage eye to suit your rigging project.
Specifications

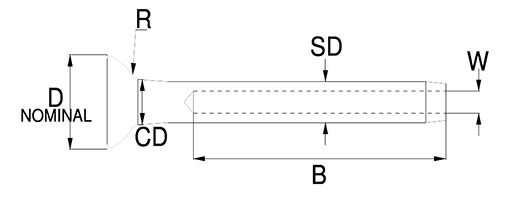

| PRODUCT CODE | WIRE (MM) | D (MM) | B (MM) | W (MM) | R (MM) | SD (MM) | CD (MM) |
|---|---|---|---|---|---|---|---|
| SB03-065 | 3 | 12.5 | 39 | 3.4 | 6.4 | 6.3 | 6.8 |
| SB04-090 | 4 | 17.0 | 45 | 4.4 | 8.9 | 7.5 | 8 |
| SB05-090 | 5 | 17.0 | 52 | 5.4 | 8.9 | 9.1 | 9.7 |
| SB05-110 | 5 | 21.0 | 52 | 5.4 | 10.9 | 9.1 | 9.7 |
| SB06-110 | 6 | 21.0 | 64 | 6.5 | 10.9 | 12.5 | 13.4 |
| SB07-110 | 7 | 21.0 | 70 | 7.5 | 10.9 | 14.3 | 15.3 |
| SB07-140 | 7 | 27.0 | 70 | 7.5 | 13.9 | 14.3 | 15.3 |
| SB08-140 | 8 | 27.0 | 80 | 8.5 | 13.9 | 16.1 | 17.3 |
| SB10-160 | 10 | 31.0 | 100 | 10.6 | 15.8 | 17.8 | 19.1 |
| SB12-180 | 12 | 35.0 | 132 | 12.8 | 17.8 | 21.4 | 23 |
| Diameter | 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm |
|---|
